[R-es] Plot. window error- Usando R base. Gráfico
neo
er|cconch@munoz @end|ng |rom gm@||@com
Mie Sep 4 22:04:27 CEST 2019
Hola Antonio, hice algunas suposiciones para completar el código y que
corriera ... y dibuja bien los gráficos ... te envío adjuntos los
primeros 10 que hice para probar:
Dos detalles para que funcionara:
1. La variable INDEX SUMMARY no tiene punto en el data.frame, pero sí en
el código, de modo que Y aparecía vacío por ese motivo.
2. En el data.frame se usa coma para el decimal, y al menos en mi compu
tengo q usar punto ... con coma no funciona.
Este es el código:
library(data.table)
setwd("/home/neo/Desktop/Rhelp/")
eco_freedom2 <- fread("EconomicFreedom.csv")
countrylist <- eco_freedom2[["Countries"]]
i <- 1
for (i in 1:10){
currcty <- countrylist[i]
filename <- paste("index",currcty,".png",sep="")
png(filename,width=800,height=600)
plot(y=eco_freedom2$SUMMARY.INDEX[eco_freedom2$Countries==currcty],x=eco_freedom2$Year[eco_freedom2$Countries==currcty],
type="l",ylab="INDEX",xlab="YEAR",main = paste("Countries", currcty))
dev.off()
}
Espero te sirva,
Saludos !!
Eric.
On 04-09-19 14:52, Antonio Rodriguez Andres wrote:
> Aqui estan en formato csv,
>
> Antonio
>
> On Wed, 4 Sep 2019 at 19:19, Carlos Ortega <cof using qualityexcellence.es
> <mailto:cof using qualityexcellence.es>> wrote:
>
> ¿Puedes compartir los datos?...
> No veo otra forma...
>
> El mié., 4 sept. 2019 a las 18:54, Antonio Rodriguez Andres
> (<antoniorodriguezandres70 using gmail.com
> <mailto:antoniorodriguezandres70 using gmail.com>>) escribió:
>
> No me sale error pero no me imprime la linea, ni ningun
> gráfico por pais.
>
> On Wed, 4 Sep 2019 at 18:42, neo <ericconchamunoz using gmail.com
> <mailto:ericconchamunoz using gmail.com>> wrote:
>
> podría ser el problema el tipo de dato en X y el tipo de
> gráfico que
> intentas hacer ?
>
> si Year es entero y estas pidiendo que el gráfico sea tipo
> "I", podría
> ser que quizá eso te produce el error ?
>
> si pruebas a cambiar X a numérico (continuo) ?
>
> Slds,
>
> Eric.
>
>
>
>
> On 04-09-19 13:06, Antonio Rodriguez Andres wrote:
> > Lo que obtengo es dim(currcty) = NULL
> >
> > lo que hice es crear una lista de paises
> >
> > countrylist <- unique(length(eco_freedom2$Countries)
> >
> > Los datos son de esta forma
> > head(eco_freedom2, 5)
> > Year ISO_Code Countries SUMMARY.INDEX
> X1..Size.of.Government
> > 641 2000 AGO Angola NA NA
> > 601 2001 AGO Angola NA NA
> > 561 2002 AGO Angola NA NA
> > 521 2003 AGO Angola NA NA
> > 481 2004 AGO Angola NA NA
> >
> > On Wed, 4 Sep 2019 at 16:53, Carlos Ortega
> <cof using qualityexcellence.es
> <mailto:cof using qualityexcellence.es>> wrote:
> >
> >> ¿Puedes compartir los datos?..
> >>
> >> Otra cosa que puede ayudar es esto lo destaco en rojo.
> >> Creo que en alguno de los casos te quedas sin datos en
> tu data.frame.
> >>
> >> Con ese mensaje puedes ver justamente el tamaño de cada
> dataframe en cada
> >> iteración.
> >>
> >>
> >> for (i in 1:length(countrylist)){
> >> currcty <- countrylist[i]
> >> * print(dim(currcty))*
> >> filename <- paste("index",currcty,".png",sep="")
> >> png(filename,width=800,height=600)
> >>
> >>
> plot(y=eco_freedom3$SUMMARY.INDEX[eco_freedom3$Countries==currcty],
> >> x=eco_freedom3$Year[eco_freedom3$Countries==currcty],
> ylim = c(2.85, 8.20),
> >> xlim = c(2000, 2016), type="l",
> ylab="INDEX",xlab="YEAR", main =
> >> paste("Countries", currcty))
> >> dev.off()
> >> }
> >>
> >> El mié., 4 sept. 2019 a las 14:52, Antonio Rodriguez
> Andres (<
> >> antoniorodriguezandres70 using gmail.com
> <mailto:antoniorodriguezandres70 using gmail.com>>) escribió:
> >>
> >>> Carlos
> >>> Al especificar los limites, no me sale ningun error,
> aunque no consigue
> >>> graficar, nada,
> >>>
> >>>
> >>> # Look at the time series for each country for the
> time period, for
> >>> instance GDPPC
> >>> for (i in 1:length(countrylist)){
> >>> currcty <- countrylist[i]
> >>> filename <- paste("index",currcty,".png",sep="")
> >>> png(filename,width=800,height=600)
> >>>
> >>>
> plot(y=eco_freedom3$SUMMARY.INDEX[eco_freedom3$Countries==currcty],
> >>> x=eco_freedom3$Year[eco_freedom3$Countries==currcty],
> ylim = c(2.85, 8.20),
> >>> xlim = c(2000, 2016), type="l", ylab="INDEX",xlab="YEAR",
> >>> main = paste("Countries", currcty))
> >>> dev.off()
> >>> }
> >>>
> >>> On Wed, 4 Sep 2019 at 11:57, Carlos Ortega
> <cof using qualityexcellence.es <mailto:cof using qualityexcellence.es>>
> >>> wrote:
> >>>
> >>>> Hola,
> >>>>
> >>>> Pon un "print(i)" en tu bucle para ver en qué
> número/paso del bucle te
> >>>> aparece el error.
> >>>> Y con ese "i" haz la selección del dataframe y mira
> que pasa.. puede que
> >>>> para ese caso, al quitar los NAs te quedes sin datos...
> >>>>
> >>>> Es una forma de debugear...
> >>>>
> >>>> Gracias,
> >>>> Carlos Ortega
> >>>> www.qualityexcellence.es
> <http://www.qualityexcellence.es>
> >>>>
> >>>>
> >>>> El mié., 4 sept. 2019 a las 11:17, Antonio Rodriguez
> Andres (<
> >>>> antoniorodriguezandres70 using gmail.com
> <mailto:antoniorodriguezandres70 using gmail.com>>) escribió:
> >>>>
> >>>>> Hola queridos usuarios de R
> >>>>>
> >>>>> Estoy intentando hacer un gráfico de una variable en
> el tiempo para un
> >>>>> conjunto de países usando R base, con el comando
> plot. Tengo 40 países y
> >>>>> son 15 años. Lo quiero salvar como formato png, cada
> uno de ellos.
> >>>>>
> >>>>> Tengo el siguiente código,
> >>>>>
> >>>>> for (i in 1:length(countrylist)){
> >>>>> currcty <- countrylist[i]
> >>>>> filename <- paste("index",currcty,".png",sep="")
> >>>>> png(filename,width=800,height=600)
> >>>>>
> >>>>>
> plot(y=eco_freedom2$SUMMARY.INDEX[eco_freedom2$Countries==currcty],
> >>>>>
> x=eco_freedom2$Year[eco_freedom2$Countries==currcty],
> type="l",
> >>>>> ylab="INDEX",xlab="YEAR",
> >>>>> main = paste("Countries", currcty))
> >>>>> dev.off()
> >>>>> }
> >>>>>
> >>>>> Pero me aparece el error Error in plot.window(...) :
> se necesitan
> >>>>> valores
> >>>>> finitos de 'xlim'. La variable y = SUMMARY.INDEX
> tiene valores Nas, y es
> >>>>> tipo numerico, y la variable x= Year es integer.
> Entiendo que es por el
> >>>>> problema de los NAs, por lo que da error.
> >>>>> Si embargo al usar na.omit(dataset), y quedarnos con
> los valores que no
> >>>>> son
> >>>>> NA, me sigue saliendo el mismo error
> >>>>>
> >>>>> Alguna idea,
> >>>>>
> >>>>> gracias
> >>>>>
> >>>>> --
> >>>>>
> >>>>> Member, Editorial Committee, *The Economic and
> Labour Relations Review*
> >>>>> (a
> >>>>> SAGE journal)
> >>>>>
> >>>>> http://elr.sagepub.com/
> >>>>>
> >>>>> Member, Editorial Committee, African Journal of
> Economic and Management
> >>>>> Studies
> >>>>>
> >>>>>
> >>>>>
> http://emeraldgrouppublishing.com/products/journals/editorial_team.htm?id=ajems
> >>>>>
> >>>>> https://www.researchgate.net/profile/Antonio_Andres
> (Research Gate
> >>>>> profile)
> >>>>>
> >>>>> [[alternative HTML version deleted]]
> >>>>>
> >>>>> _______________________________________________
> >>>>> R-help-es mailing list
> >>>>> R-help-es using r-project.org <mailto:R-help-es using r-project.org>
> >>>>> https://stat.ethz.ch/mailman/listinfo/r-help-es
> >>>>>
> >>>>
> >>>> --
> >>>> Saludos,
> >>>> Carlos Ortega
> >>>> www.qualityexcellence.es
> <http://www.qualityexcellence.es>
> >>>>
> >>>
> >>> --
> >>>
> >>> Member, Editorial Committee, *The Economic and Labour
> Relations Review* (a
> >>> SAGE journal)
> >>>
> >>> http://elr.sagepub.com/
> >>>
> >>> Member, Editorial Committee, African Journal of
> Economic and Management
> >>> Studies
> >>>
> >>>
> >>>
> http://emeraldgrouppublishing.com/products/journals/editorial_team.htm?id=ajems
> >>>
> >>> https://www.researchgate.net/profile/Antonio_Andres
> (Research Gate
> >>> profile)
> >>>
> >>>
> >>>
> >> --
> >> Saludos,
> >> Carlos Ortega
> >> www.qualityexcellence.es <http://www.qualityexcellence.es>
> >>
> >
>
>
>
> --
>
> Member, Editorial Committee, /The Economic and Labour
> Relations Review/ (a SAGE journal)
>
> http://elr.sagepub.com/
>
> Member, Editorial Committee, African Journal of Economic and
> Management Studies
>
> http://emeraldgrouppublishing.com/products/journals/editorial_team.htm?id=ajems
>
> https://www.researchgate.net/profile/Antonio_Andres(Research
> Gate profile)
>
>
>
>
> --
> Saludos,
> Carlos Ortega
> www.qualityexcellence.es <http://www.qualityexcellence.es>
>
>
>
> --
>
> Member, Editorial Committee, /The Economic and Labour Relations
> Review/ (a SAGE journal)
>
> http://elr.sagepub.com/
>
> Member, Editorial Committee, African Journal of Economic and
> Management Studies
>
> http://emeraldgrouppublishing.com/products/journals/editorial_team.htm?id=ajems
>
> https://www.researchgate.net/profile/Antonio_Andres(Research Gate profile)
>
>
------------ próxima parte ------------
Se ha borrado un adjunto en formato HTML...
URL: <https://stat.ethz.ch/pipermail/r-help-es/attachments/20190904/2faa8c97/attachment-0001.html>
------------ próxima parte ------------
A non-text attachment was scrubbed...

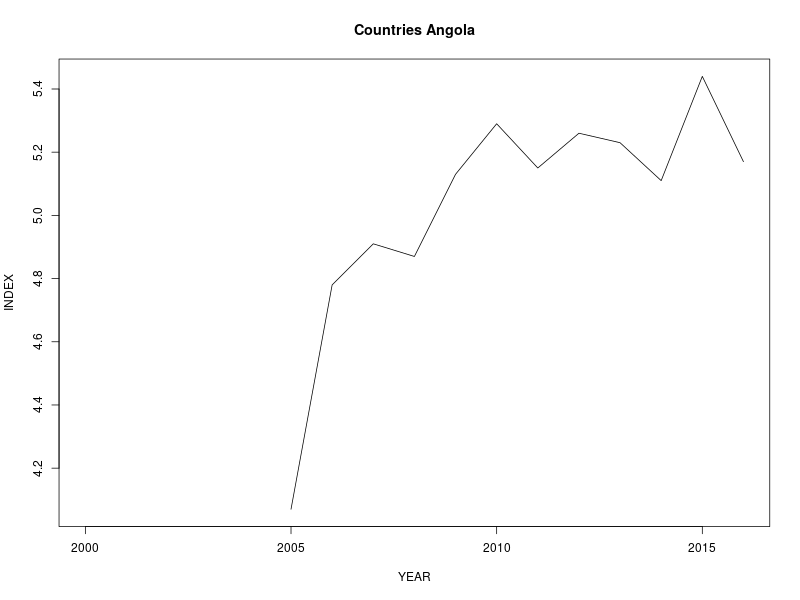

Name: indexAngola.png
Type: image/png
Size: 9854 bytes
Desc: no disponible
URL: <https://stat.ethz.ch/pipermail/r-help-es/attachments/20190904/2faa8c97/attachment-0010.png>
------------ próxima parte ------------
A non-text attachment was scrubbed...
Name: indexBenin.png
Type: image/png
Size: 12520 bytes
Desc: no disponible
URL: <https://stat.ethz.ch/pipermail/r-help-es/attachments/20190904/2faa8c97/attachment-0011.png>
------------ próxima parte ------------
A non-text attachment was scrubbed...
Name: indexBotswana.png
Type: image/png
Size: 11558 bytes
Desc: no disponible
URL: <https://stat.ethz.ch/pipermail/r-help-es/attachments/20190904/2faa8c97/attachment-0012.png>
------------ próxima parte ------------
A non-text attachment was scrubbed...

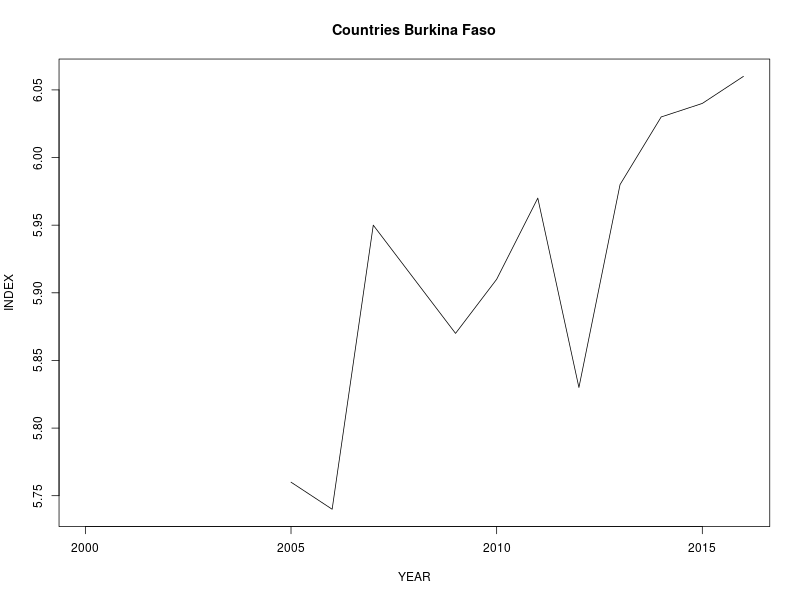

Name: indexBurkina Faso.png
